1-1/2" NAIL STRIP SNAP-LOCK STANDING SEAM
METAL PANELS / CONCEALED FASTENERS / TOPMAX
Tops in Material, Strength
and Value

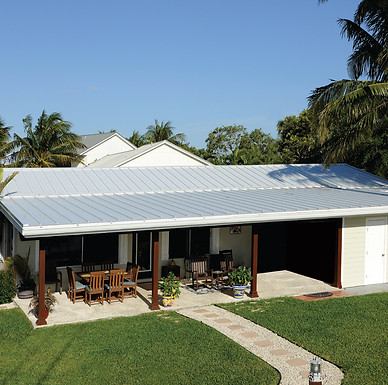

TOPMAX is the architects’ favorite when designing for commercial and residential building applications. Boasting heavy-duty materials and long clean lines, TOPMAX metal roofing system features a snap-lock system that eliminates clips while maintaining its excellent expansion and contraction features. TOPMAX is the product to choose when searching for superior protection from the elements and beautiful, low-slope standing seam panels.
Product Features
-
Residential and commercial use
-
1-1/2-inch nail strip, snap-lock, standing seam
-
Heavy gauge for durability, longevity
-
Hidden, snap-lock fasteners for ease of installation
-
25+ color options, custom available
-
Striated, pencil bead, ribbon bead and traditional flat seam options
-
Custom lengths
-
No mechanical seaming required
-
Free onsite production
-
Warranties on materials and finishes up to 50 years
Product Specifications
-
Material: 24-, 26-gauge steel, .032, .040 aluminum
-
Slope: 2:12 or greater slope
-
Support: Wood deck 15/32-inch thickness or greater plywood
-
Coverage: 15 inches or 19 inches
-
Finish: 70% PVDF (Kynar 500®), Tedlar® PVF film, mill-finished MaxAlúme
-
Sustainability: Energy Star® rated products available
-
Quality: Keystone Quality Assurance Program,
Miami-Dade Quality Assurance Program
Product Testing
-
Uplift Resistance: UL 580, UL 1897, TAS 110, TAS 125
-
Wind-Driven Rain: TAS 100
-
Tensil Strength: ASTM E8
-
Fire Rating: UL 790
-
Accelerated Coating: ASTM G152
-
Salt Spray Coating: ASTM B117
-
Florida Building Code: Approved HVHZ/Non-HVHZ
-
Miami-Dade County: Product Control Approved
TOPMAX Profile Card - Download pdf
TOPMAX Installation Guide - Download pdf
